0. Check if Inkcut is already installed¶
On a Linux computer, open a terminal window.
Type
If Inkcut starts then it is installed.
Go to step 3.
1. Install Inkcut¶
What are the technical reasons behind this setup?
See my notes for details.
Inkcut is a program to send things to cut to the vinyl cutter. It works under Linux, Mac and Windows. This guide shows how to do this for Linux.
If you could provide these instructions for Mac or Windows, please contribute!
1.1 Start a terminal¶
On a Linux computer, start a terminal:

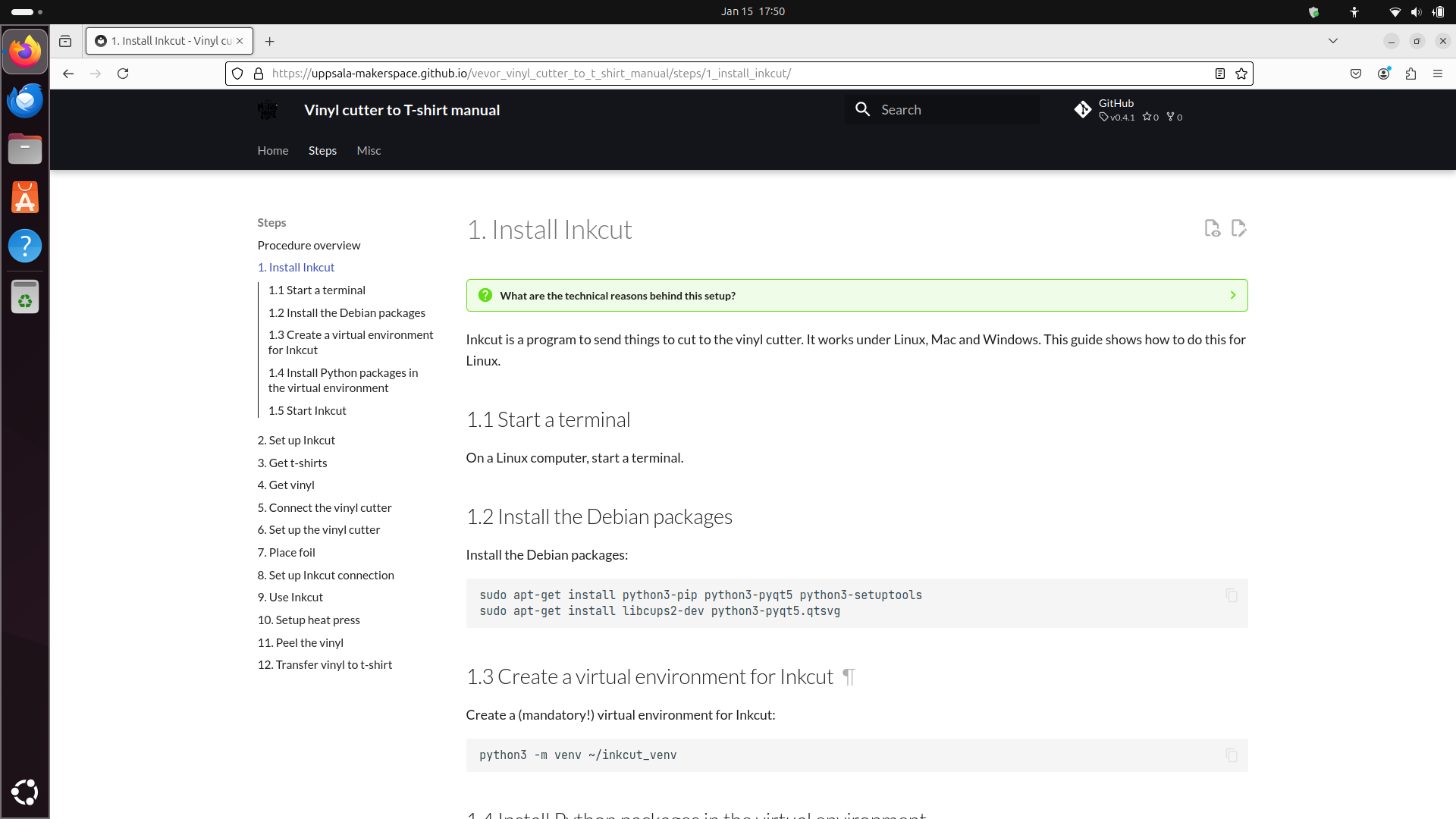

How does this look like?

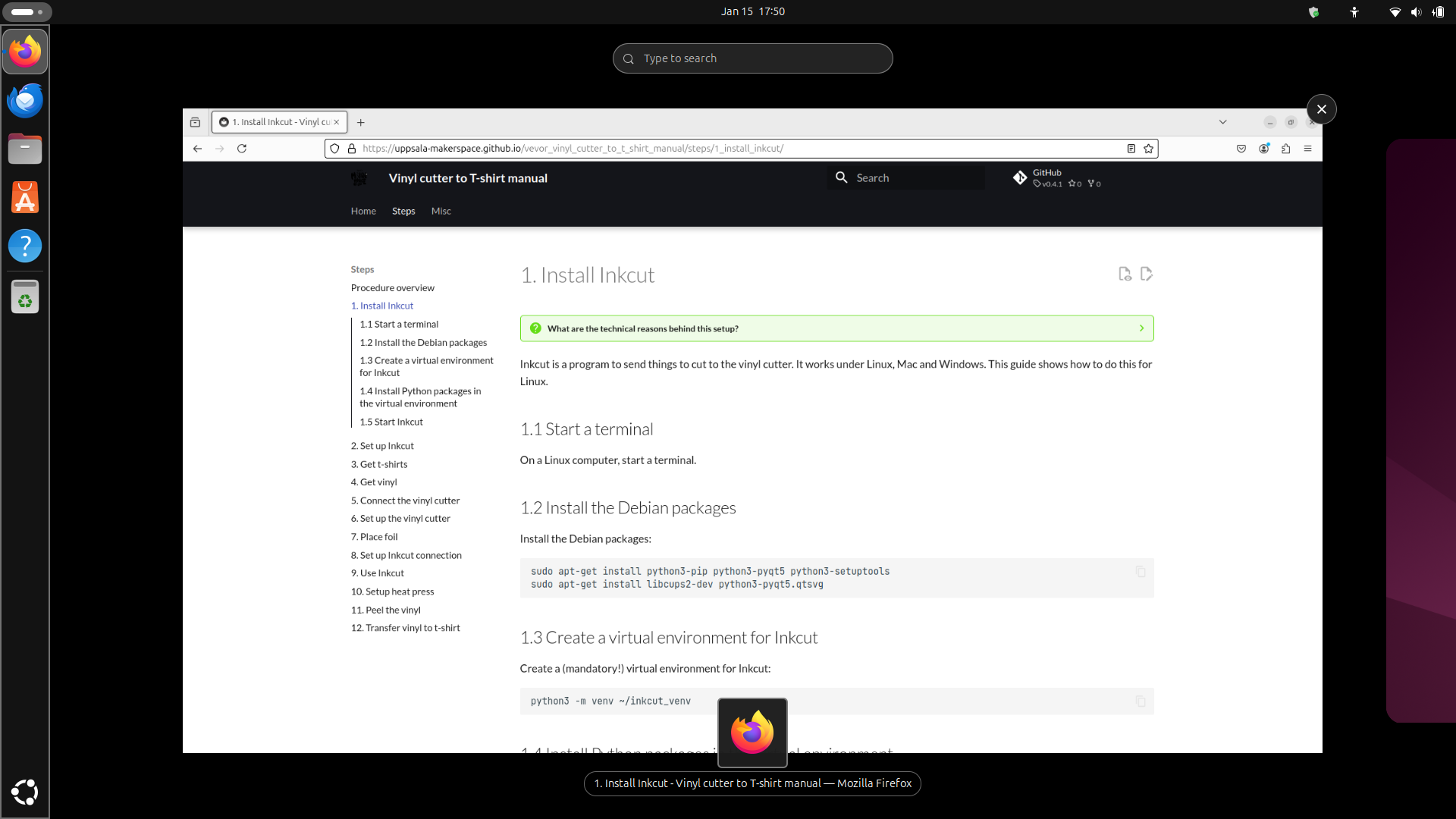

- Press the Meta/Windows key (between Ctrl and Alt at the bottom left of the keyboard)
How does this look like?

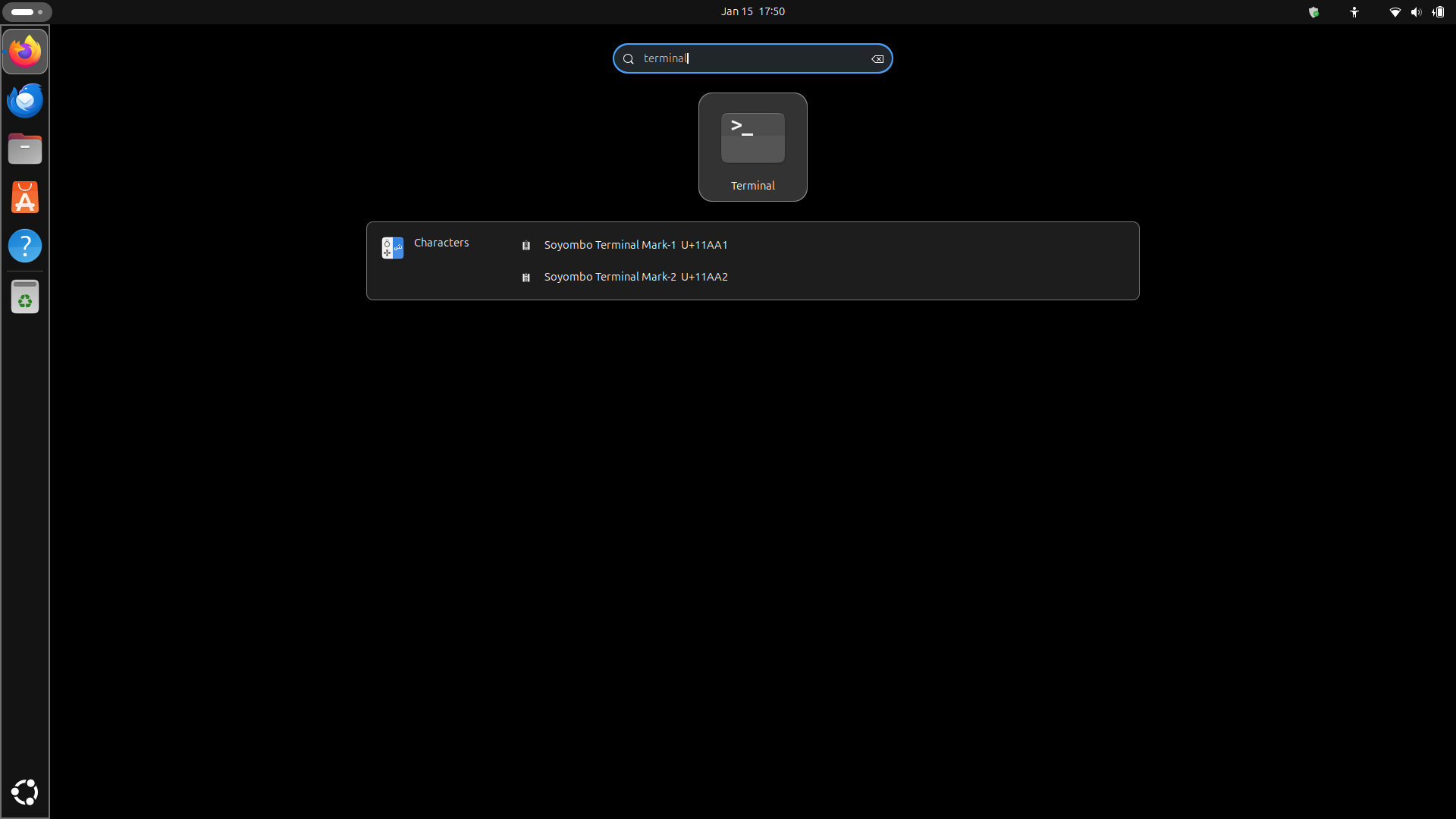

- Type
terminal
How does this look like?

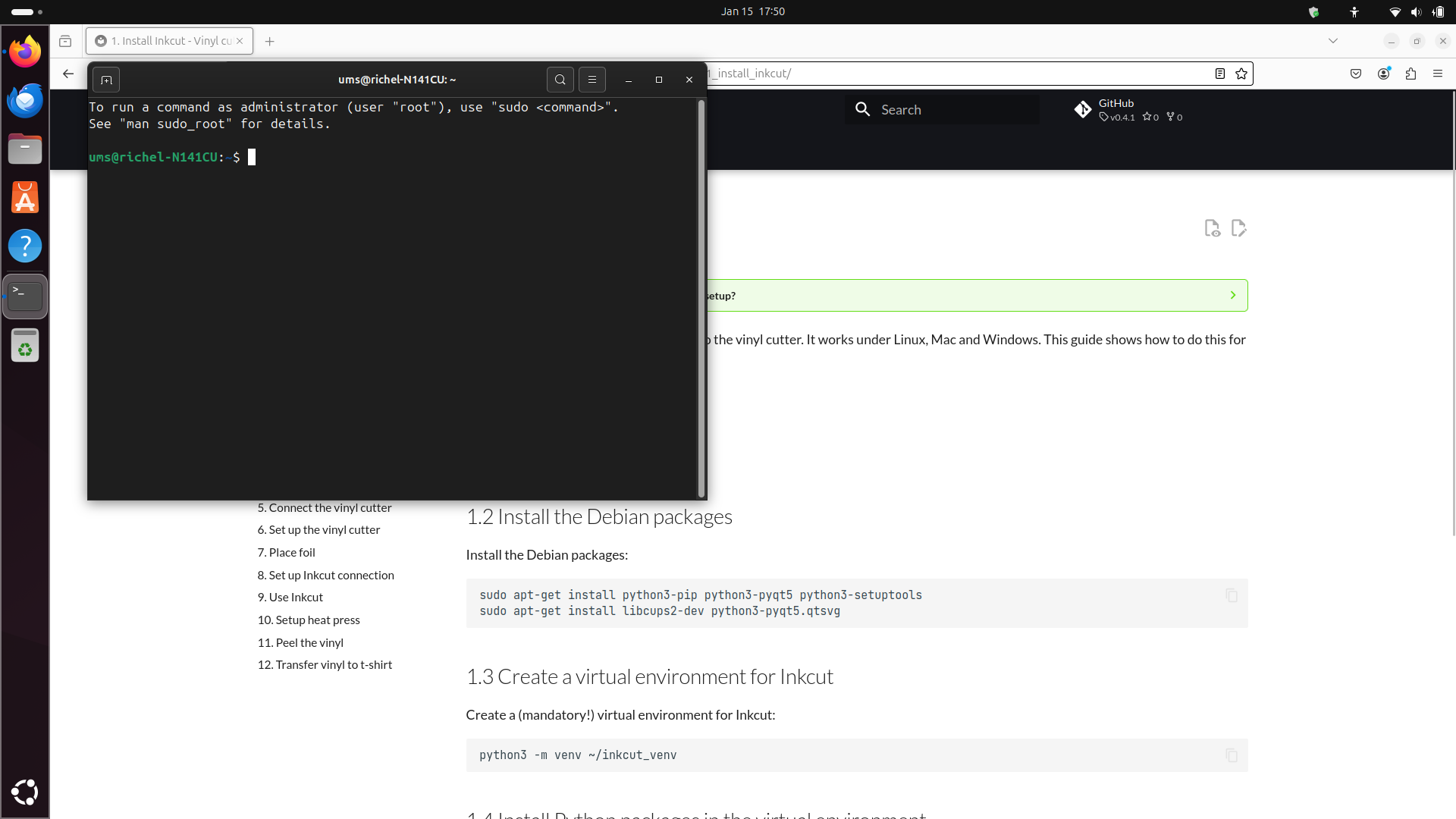

Now you have started a terminal
How does this look like?
1.2 Install the Debian packages¶
Copy-paste the following command to the terminal:
How do I paste?
Press the right mouse button and click on 'Paste'
Or: use Ctrl-Shift-V
Huh, Ctrl-V does not work for pasting?
Correct, in a Linux terminal, one needs to use Ctrl-Shift-V

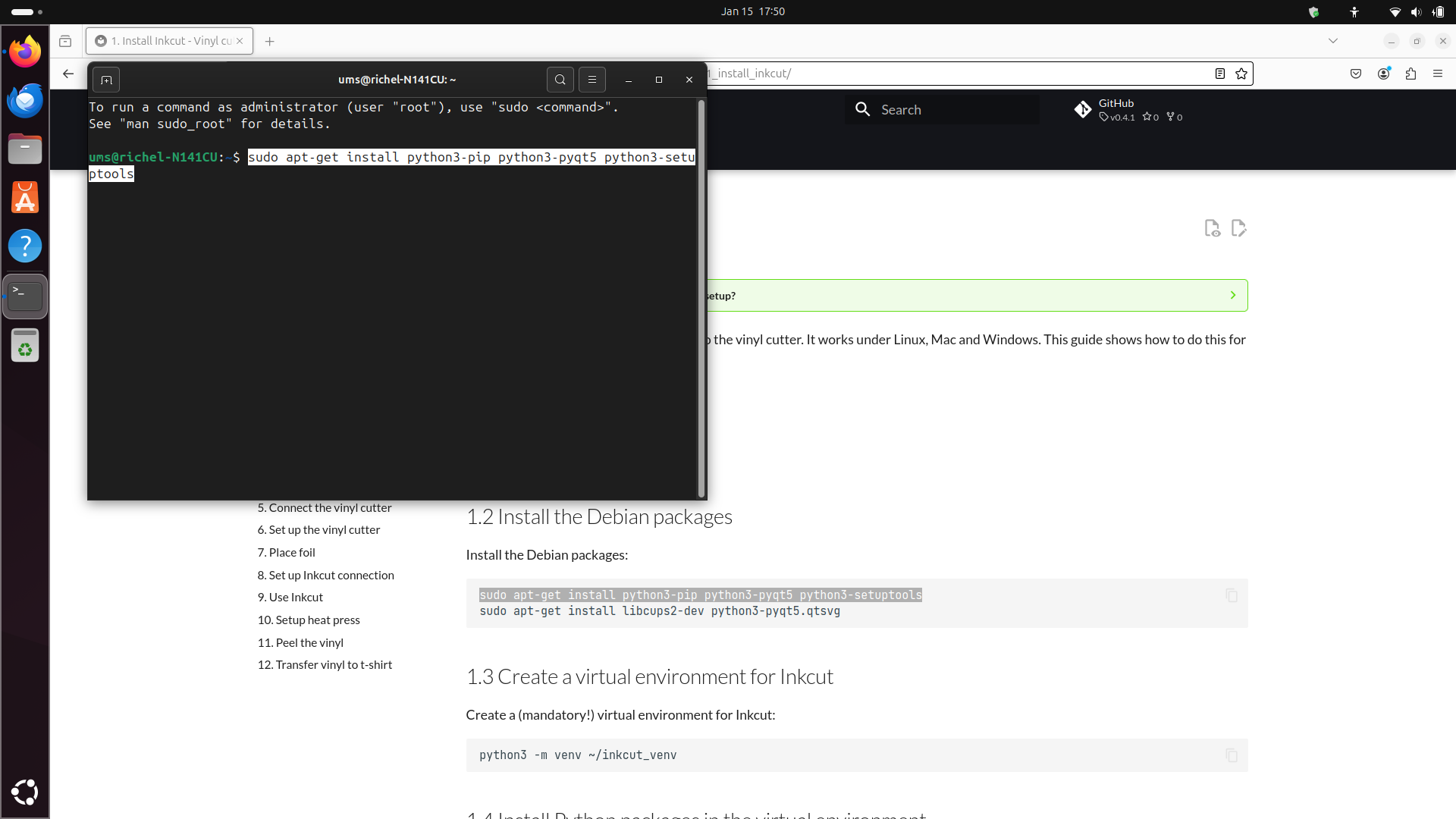

How does that look like?
Probably you will need to type a password and press enter.
How does that look like?
Huh? There are no asterisks appearing when I type?
Correct: when typing, no characters such as asterisks appear. This is for security reasons.
You will probably be asked if you want to install these programs. Type 'Y' and press enter.
You will see a lot of programs being installed.

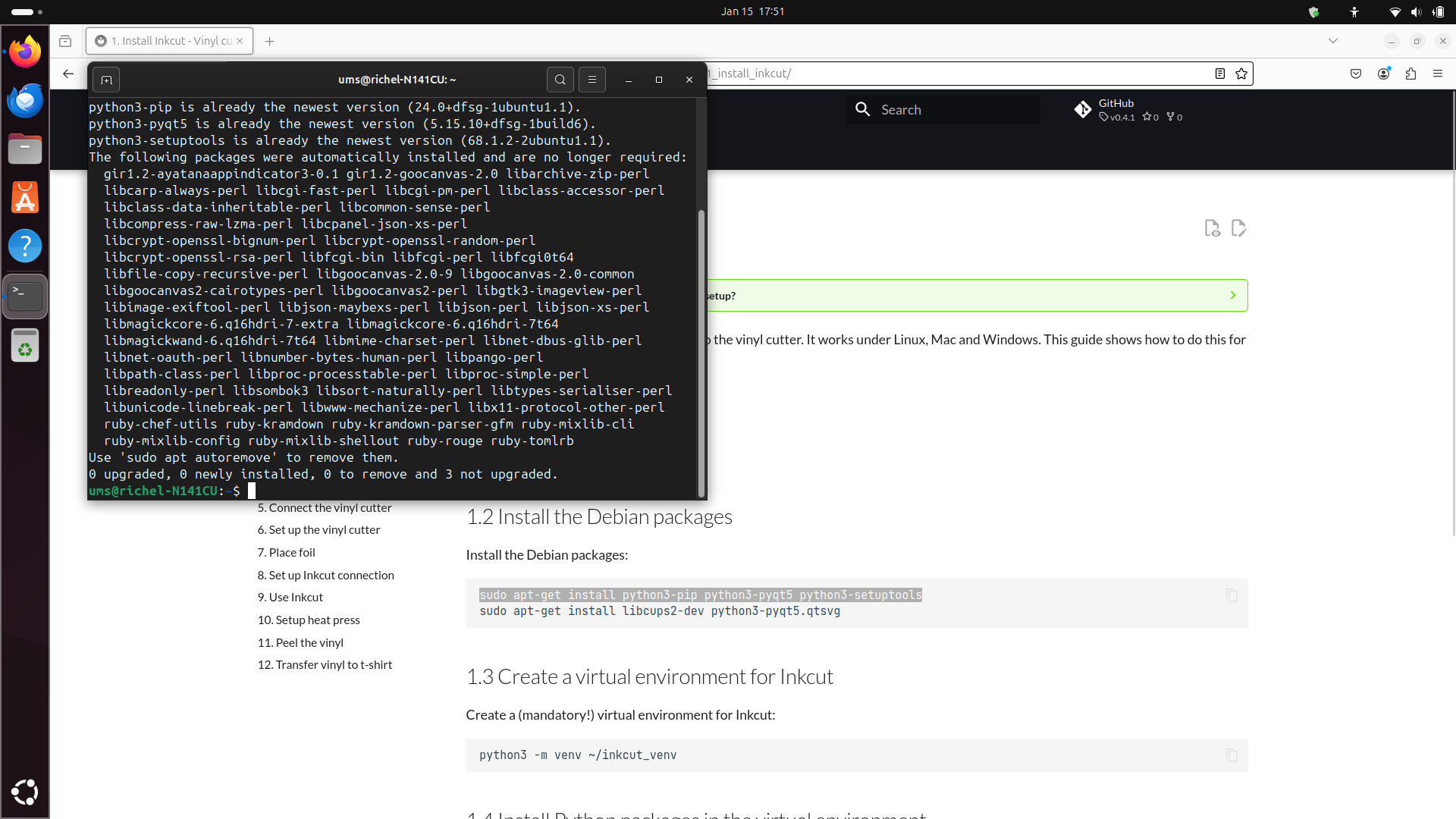

How does that look like?
It will look similar to this:
ums@richel-N141CU:~$ sudo apt-get install python3-pip python3-pyqt5 python3-setuptools
[sudo] password for ums:
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
python3-pip is already the newest version (24.0+dfsg-1ubuntu1.1).
python3-pyqt5 is already the newest version (5.15.10+dfsg-1build6).
python3-setuptools is already the newest version (68.1.2-2ubuntu1.1).
The following packages were automatically installed and are no longer required:
gir1.2-ayatanaappindicator3-0.1 gir1.2-goocanvas-2.0 libarchive-zip-perl
libcarp-always-perl libcgi-fast-perl libcgi-pm-perl libclass-accessor-perl
libclass-data-inheritable-perl libcommon-sense-perl
libcompress-raw-lzma-perl libcpanel-json-xs-perl
libcrypt-openssl-bignum-perl libcrypt-openssl-random-perl
libcrypt-openssl-rsa-perl libfcgi-bin libfcgi-perl libfcgi0t64
libfile-copy-recursive-perl libgoocanvas-2.0-9 libgoocanvas-2.0-common
libgoocanvas2-cairotypes-perl libgoocanvas2-perl libgtk3-imageview-perl
libimage-exiftool-perl libjson-maybexs-perl libjson-perl libjson-xs-perl
libmagickcore-6.q16hdri-7-extra libmagickcore-6.q16hdri-7t64
libmagickwand-6.q16hdri-7t64 libmime-charset-perl libnet-dbus-glib-perl
libnet-oauth-perl libnumber-bytes-human-perl libpango-perl
libpath-class-perl libproc-processtable-perl libproc-simple-perl
libreadonly-perl libsombok3 libsort-naturally-perl libtypes-serialiser-perl
libunicode-linebreak-perl libwww-mechanize-perl libx11-protocol-other-perl
ruby-chef-utils ruby-kramdown ruby-kramdown-parser-gfm ruby-mixlib-cli
ruby-mixlib-config ruby-mixlib-shellout ruby-rouge ruby-tomlrb
Use 'sudo apt autoremove' to remove them.
0 upgraded, 0 newly installed, 0 to remove and 3 not upgraded.
Well done!
How does that look like?
Now repeat with this command:
How does that look like?
Similar to this:
ums@richel-N141CU:~$ sudo apt-get install libcups2-dev python3-pyqt5.qtsvg
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
libcups2-dev is already the newest version (2.4.7-1.2ubuntu7.3).
python3-pyqt5.qtsvg is already the newest version (5.15.10+dfsg-1build6).
The following packages were automatically installed and are no longer required:
gir1.2-ayatanaappindicator3-0.1 gir1.2-goocanvas-2.0 libarchive-zip-perl
libcarp-always-perl libcgi-fast-perl libcgi-pm-perl libclass-accessor-perl
libclass-data-inheritable-perl libcommon-sense-perl
libcompress-raw-lzma-perl libcpanel-json-xs-perl
libcrypt-openssl-bignum-perl libcrypt-openssl-random-perl
libcrypt-openssl-rsa-perl libfcgi-bin libfcgi-perl libfcgi0t64
libfile-copy-recursive-perl libgoocanvas-2.0-9 libgoocanvas-2.0-common
libgoocanvas2-cairotypes-perl libgoocanvas2-perl libgtk3-imageview-perl
libimage-exiftool-perl libjson-maybexs-perl libjson-perl libjson-xs-perl
libmagickcore-6.q16hdri-7-extra libmagickcore-6.q16hdri-7t64
libmagickwand-6.q16hdri-7t64 libmime-charset-perl libnet-dbus-glib-perl
libnet-oauth-perl libnumber-bytes-human-perl libpango-perl
libpath-class-perl libproc-processtable-perl libproc-simple-perl
libreadonly-perl libsombok3 libsort-naturally-perl libtypes-serialiser-perl
libunicode-linebreak-perl libwww-mechanize-perl libx11-protocol-other-perl
ruby-chef-utils ruby-kramdown ruby-kramdown-parser-gfm ruby-mixlib-cli
ruby-mixlib-config ruby-mixlib-shellout ruby-rouge ruby-tomlrb
Use 'sudo apt autoremove' to remove them.
0 upgraded, 0 newly installed, 0 to remove and 3 not upgraded.
1.3 Create a virtual environment for Inkcut¶
Create a (mandatory!) virtual environment for Inkcut:
If you get the error 'The virtual environment was not created successfully', try:
It gives the error 'The virtual environment was not created successfully'
This is the full errr message:
ums@rikthyvel:~$ python3 -m venv ~/inkcut_venv
The virtual environment was not created successfully because ensurepip is not
available. On Debian/Ubuntu systems, you need to install the python3-venv
package using the following command.
apt install python3.12-venv
You may need to use sudo with that command. After installing the python3-venv
package, recreate your virtual environment.
Failing command: /home/ums/inkcut_venv/bin/python3
The solution can be found in the text:
This is how that looks like:
ums@rikthyvel:~$ sudo apt install python3.12-venv
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
The following package was automatically installed and is no longer required:
python3-netifaces
Use 'sudo apt autoremove' to remove it.
The following additional packages will be installed:
python3-pip-whl python3-setuptools-whl
The following NEW packages will be installed:
python3-pip-whl python3-setuptools-whl python3.12-venv
0 upgraded, 3 newly installed, 0 to remove and 70 not upgraded.
Need to get 2,424 kB of archives.
After this operation, 2,771 kB of additional disk space will be used.
Do you want to continue? [Y/n] y
After this, try again.
Huh? It says nothing!
Correct! This is 'The Golden Rule of Silence': when everything works, say nothing (over saying 'OK')
How does that look like?
Similar to this:
1.4 Install Python packages in the virtual environment¶
Install the Inkcut and PyQt5 Python packages in the virtual environment"
How does that look like?
It will look similar to this:
ums@richel-N141CU:~$ ~/inkcut_venv/bin/pip install inkcut PyQt5
Collecting inkcut
Downloading inkcut-2.1.5-py2.py3-none-any.whl.metadata (2.7 kB)
Collecting PyQt5
Downloading PyQt5-5.15.11-cp38-abi3-manylinux_2_17_x86_64.whl.metadata (2.1 kB)
Collecting twisted (from inkcut)
Downloading twisted-24.11.0-py3-none-any.whl.metadata (20 kB)
Collecting enamlx>=0.4.2 (from inkcut)
Downloading enamlx-0.6.4-py2.py3-none-any.whl.metadata (1.9 kB)
Collecting pyqtgraph (from inkcut)
Downloading pyqtgraph-0.13.7-py3-none-any.whl.metadata (1.3 kB)
Collecting qtconsole (from inkcut)
Downloading qtconsole-5.6.1-py3-none-any.whl.metadata (5.0 kB)
Collecting pyserial>=3.5 (from inkcut)
Downloading pyserial-3.5-py2.py3-none-any.whl.metadata (1.6 kB)
Collecting jsonpickle (from inkcut)
Downloading jsonpickle-4.0.1-py3-none-any.whl.metadata (8.2 kB)
Collecting lxml (from inkcut)
Downloading lxml-5.3.0-cp312-cp312-manylinux_2_28_x86_64.whl.metadata (3.8 kB)
Collecting qt-reactor (from inkcut)
Downloading qt_reactor-0.6.1-py2.py3-none-any.whl.metadata (2.1 kB)
Collecting enaml>=0.10 (from inkcut)
Downloading enaml-0.18.0-cp312-cp312-manylinux_2_12_x86_64.manylinux2010_x86_64.manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata (13 kB)
Collecting pycups (from inkcut)
Downloading pycups-2.0.4.tar.gz (65 kB)
======================================== 65.1/65.1 kB 3.4 MB/s eta 0:00:00
Installing build dependencies ... done
Getting requirements to build wheel ... done
Preparing metadata (pyproject.toml) ... done
Collecting PyQt5-sip<13,>=12.15 (from PyQt5)
Downloading PyQt5_sip-12.16.1-cp312-cp312-manylinux_2_5_x86_64.manylinux1_x86_64.whl.metadata (421 bytes)
Collecting PyQt5-Qt5<5.16.0,>=5.15.2 (from PyQt5)
Downloading PyQt5_Qt5-5.15.16-py3-none-manylinux2014_x86_64.whl.metadata (536 bytes)
Collecting atom>=0.9.0 (from enaml>=0.10->inkcut)
Downloading atom-0.11.0-cp312-cp312-manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata (8.1 kB)
Collecting kiwisolver>=1.2.0 (from enaml>=0.10->inkcut)
Downloading kiwisolver-1.4.8-cp312-cp312-manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata (6.2 kB)
Collecting bytecode>=0.15.1 (from enaml>=0.10->inkcut)
Downloading bytecode-0.16.0-py3-none-any.whl.metadata (4.7 kB)
Collecting pegen>=0.3.0 (from enaml>=0.10->inkcut)
Downloading pegen-0.3.0-py3-none-any.whl.metadata (11 kB)
Collecting numpy>=1.22.0 (from pyqtgraph->inkcut)
Downloading numpy-2.2.1-cp312-cp312-manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata (62 kB)
======================================== 62.0/62.0 kB 3.4 MB/s eta 0:00:00
Collecting qtpy (from qt-reactor->inkcut)
Downloading QtPy-2.4.2-py3-none-any.whl.metadata (12 kB)
Collecting traitlets!=5.2.1,!=5.2.2 (from qtconsole->inkcut)
Downloading traitlets-5.14.3-py3-none-any.whl.metadata (10 kB)
Collecting jupyter-core (from qtconsole->inkcut)
Downloading jupyter_core-5.7.2-py3-none-any.whl.metadata (3.4 kB)
Collecting jupyter-client>=4.1 (from qtconsole->inkcut)
Downloading jupyter_client-8.6.3-py3-none-any.whl.metadata (8.3 kB)
Collecting pygments (from qtconsole->inkcut)
Downloading pygments-2.19.1-py3-none-any.whl.metadata (2.5 kB)
Collecting ipykernel>=4.1 (from qtconsole->inkcut)
Downloading ipykernel-6.29.5-py3-none-any.whl.metadata (6.3 kB)
Collecting packaging (from qtconsole->inkcut)
Downloading packaging-24.2-py3-none-any.whl.metadata (3.2 kB)
Collecting attrs>=22.2.0 (from twisted->inkcut)
Downloading attrs-24.3.0-py3-none-any.whl.metadata (11 kB)
Collecting automat>=24.8.0 (from twisted->inkcut)
Downloading Automat-24.8.1-py3-none-any.whl.metadata (8.4 kB)
Collecting constantly>=15.1 (from twisted->inkcut)
Downloading constantly-23.10.4-py3-none-any.whl.metadata (1.8 kB)
Collecting hyperlink>=17.1.1 (from twisted->inkcut)
Downloading hyperlink-21.0.0-py2.py3-none-any.whl.metadata (1.5 kB)
Collecting incremental>=24.7.0 (from twisted->inkcut)
Downloading incremental-24.7.2-py3-none-any.whl.metadata (8.1 kB)
Collecting typing-extensions>=4.2.0 (from twisted->inkcut)
Downloading typing_extensions-4.12.2-py3-none-any.whl.metadata (3.0 kB)
Collecting zope-interface>=5 (from twisted->inkcut)
Downloading zope.interface-7.2-cp312-cp312-manylinux_2_5_x86_64.manylinux1_x86_64.manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata (44 kB)
======================================== 44.4/44.4 kB 2.2 MB/s eta 0:00:00
Collecting idna>=2.5 (from hyperlink>=17.1.1->twisted->inkcut)
Downloading idna-3.10-py3-none-any.whl.metadata (10 kB)
Collecting setuptools>=61.0 (from incremental>=24.7.0->twisted->inkcut)
Using cached setuptools-75.8.0-py3-none-any.whl.metadata (6.7 kB)
Collecting comm>=0.1.1 (from ipykernel>=4.1->qtconsole->inkcut)
Downloading comm-0.2.2-py3-none-any.whl.metadata (3.7 kB)
Collecting debugpy>=1.6.5 (from ipykernel>=4.1->qtconsole->inkcut)
Downloading debugpy-1.8.11-cp312-cp312-manylinux_2_5_x86_64.manylinux1_x86_64.manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata (1.1 kB)
Collecting ipython>=7.23.1 (from ipykernel>=4.1->qtconsole->inkcut)
Downloading ipython-8.31.0-py3-none-any.whl.metadata (4.9 kB)
Collecting matplotlib-inline>=0.1 (from ipykernel>=4.1->qtconsole->inkcut)
Downloading matplotlib_inline-0.1.7-py3-none-any.whl.metadata (3.9 kB)
Collecting nest-asyncio (from ipykernel>=4.1->qtconsole->inkcut)
Downloading nest_asyncio-1.6.0-py3-none-any.whl.metadata (2.8 kB)
Collecting psutil (from ipykernel>=4.1->qtconsole->inkcut)
Downloading psutil-6.1.1-cp36-abi3-manylinux_2_12_x86_64.manylinux2010_x86_64.manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata (22 kB)
Collecting pyzmq>=24 (from ipykernel>=4.1->qtconsole->inkcut)
Downloading pyzmq-26.2.0-cp312-cp312-manylinux_2_28_x86_64.whl.metadata (6.2 kB)
Collecting tornado>=6.1 (from ipykernel>=4.1->qtconsole->inkcut)
Downloading tornado-6.4.2-cp38-abi3-manylinux_2_5_x86_64.manylinux1_x86_64.manylinux_2_17_x86_64.manylinux2014_x86_64.whl.metadata (2.5 kB)
Collecting python-dateutil>=2.8.2 (from jupyter-client>=4.1->qtconsole->inkcut)
Downloading python_dateutil-2.9.0.post0-py2.py3-none-any.whl.metadata (8.4 kB)
Collecting platformdirs>=2.5 (from jupyter-core->qtconsole->inkcut)
Downloading platformdirs-4.3.6-py3-none-any.whl.metadata (11 kB)
Collecting decorator (from ipython>=7.23.1->ipykernel>=4.1->qtconsole->inkcut)
Downloading decorator-5.1.1-py3-none-any.whl.metadata (4.0 kB)
Collecting jedi>=0.16 (from ipython>=7.23.1->ipykernel>=4.1->qtconsole->inkcut)
Downloading jedi-0.19.2-py2.py3-none-any.whl.metadata (22 kB)
Collecting pexpect>4.3 (from ipython>=7.23.1->ipykernel>=4.1->qtconsole->inkcut)
Downloading pexpect-4.9.0-py2.py3-none-any.whl.metadata (2.5 kB)
Collecting prompt_toolkit<3.1.0,>=3.0.41 (from ipython>=7.23.1->ipykernel>=4.1->qtconsole->inkcut)
Downloading prompt_toolkit-3.0.48-py3-none-any.whl.metadata (6.4 kB)
Collecting stack_data (from ipython>=7.23.1->ipykernel>=4.1->qtconsole->inkcut)
Downloading stack_data-0.6.3-py3-none-any.whl.metadata (18 kB)
Collecting six>=1.5 (from python-dateutil>=2.8.2->jupyter-client>=4.1->qtconsole->inkcut)
Downloading six-1.17.0-py2.py3-none-any.whl.metadata (1.7 kB)
Collecting parso<0.9.0,>=0.8.4 (from jedi>=0.16->ipython>=7.23.1->ipykernel>=4.1->qtconsole->inkcut)
Downloading parso-0.8.4-py2.py3-none-any.whl.metadata (7.7 kB)
Collecting ptyprocess>=0.5 (from pexpect>4.3->ipython>=7.23.1->ipykernel>=4.1->qtconsole->inkcut)
Downloading ptyprocess-0.7.0-py2.py3-none-any.whl.metadata (1.3 kB)
Collecting wcwidth (from prompt_toolkit<3.1.0,>=3.0.41->ipython>=7.23.1->ipykernel>=4.1->qtconsole->inkcut)
Downloading wcwidth-0.2.13-py2.py3-none-any.whl.metadata (14 kB)
Collecting executing>=1.2.0 (from stack_data->ipython>=7.23.1->ipykernel>=4.1->qtconsole->inkcut)
Downloading executing-2.1.0-py2.py3-none-any.whl.metadata (8.9 kB)
Collecting asttokens>=2.1.0 (from stack_data->ipython>=7.23.1->ipykernel>=4.1->qtconsole->inkcut)
Downloading asttokens-3.0.0-py3-none-any.whl.metadata (4.7 kB)
Collecting pure-eval (from stack_data->ipython>=7.23.1->ipykernel>=4.1->qtconsole->inkcut)
Downloading pure_eval-0.2.3-py3-none-any.whl.metadata (6.3 kB)
Downloading inkcut-2.1.5-py2.py3-none-any.whl (1.2 MB)
======================================== 1.2/1.2 MB 3.5 MB/s eta 0:00:00
Downloading PyQt5-5.15.11-cp38-abi3-manylinux_2_17_x86_64.whl (8.2 MB)
======================================== 8.2/8.2 MB 19.2 MB/s eta 0:00:00
Downloading enaml-0.18.0-cp312-cp312-manylinux_2_12_x86_64.manylinux2010_x86_64.manylinux_2_17_x86_64.manylinux2014_x86_64.whl (1.2 MB)
======================================== 1.2/1.2 MB 10.1 MB/s eta 0:00:00
Downloading enamlx-0.6.4-py2.py3-none-any.whl (47 kB)
======================================== 47.9/47.9 kB 2.2 MB/s eta 0:00:00
Downloading PyQt5_Qt5-5.15.16-py3-none-manylinux2014_x86_64.whl (59.9 MB)
======================================== 59.9/59.9 MB 10.3 MB/s eta 0:00:00
Downloading PyQt5_sip-12.16.1-cp312-cp312-manylinux_2_5_x86_64.manylinux1_x86_64.whl (281 kB)
======================================== 281.6/281.6 kB 11.2 MB/s eta 0:00:00
Downloading pyserial-3.5-py2.py3-none-any.whl (90 kB)
======================================== 90.6/90.6 kB 5.4 MB/s eta 0:00:00
Downloading jsonpickle-4.0.1-py3-none-any.whl (46 kB)
======================================== 46.2/46.2 kB 2.9 MB/s eta 0:00:00
Downloading lxml-5.3.0-cp312-cp312-manylinux_2_28_x86_64.whl (4.9 MB)
======================================== 4.9/4.9 MB 24.7 MB/s eta 0:00:00
Downloading pyqtgraph-0.13.7-py3-none-any.whl (1.9 MB)
======================================== 1.9/1.9 MB 19.4 MB/s eta 0:00:00
Downloading qt_reactor-0.6.1-py2.py3-none-any.whl (7.5 kB)
Downloading qtconsole-5.6.1-py3-none-any.whl (125 kB)
======================================== 125.0/125.0 kB 7.2 MB/s eta 0:00:00
Downloading twisted-24.11.0-py3-none-any.whl (3.2 MB)
======================================== 3.2/3.2 MB 21.9 MB/s eta 0:00:00
Downloading atom-0.11.0-cp312-cp312-manylinux_2_17_x86_64.manylinux2014_x86_64.whl (1.5 MB)
======================================== 1.5/1.5 MB 8.7 MB/s eta 0:00:00
Downloading attrs-24.3.0-py3-none-any.whl (63 kB)
======================================== 63.4/63.4 kB 3.2 MB/s eta 0:00:00
Downloading Automat-24.8.1-py3-none-any.whl (42 kB)
======================================== 42.6/42.6 kB 2.6 MB/s eta 0:00:00
Downloading bytecode-0.16.0-py3-none-any.whl (41 kB)
======================================== 41.6/41.6 kB 2.3 MB/s eta 0:00:00
Downloading constantly-23.10.4-py3-none-any.whl (13 kB)
Downloading hyperlink-21.0.0-py2.py3-none-any.whl (74 kB)
======================================== 74.6/74.6 kB 3.7 MB/s eta 0:00:00
Downloading incremental-24.7.2-py3-none-any.whl (20 kB)
Downloading ipykernel-6.29.5-py3-none-any.whl (117 kB)
======================================== 117.2/117.2 kB 7.0 MB/s eta 0:00:00
Downloading jupyter_client-8.6.3-py3-none-any.whl (106 kB)
======================================== 106.1/106.1 kB 5.5 MB/s eta 0:00:00
Downloading jupyter_core-5.7.2-py3-none-any.whl (28 kB)
Downloading kiwisolver-1.4.8-cp312-cp312-manylinux_2_17_x86_64.manylinux2014_x86_64.whl (1.5 MB)
======================================== 1.5/1.5 MB 17.2 MB/s eta 0:00:00
Downloading numpy-2.2.1-cp312-cp312-manylinux_2_17_x86_64.manylinux2014_x86_64.whl (16.1 MB)
======================================== 16.1/16.1 MB 19.6 MB/s eta 0:00:00
Downloading pegen-0.3.0-py3-none-any.whl (35 kB)
Downloading QtPy-2.4.2-py3-none-any.whl (95 kB)
======================================== 95.2/95.2 kB 4.7 MB/s eta 0:00:00
Downloading traitlets-5.14.3-py3-none-any.whl (85 kB)
======================================== 85.4/85.4 kB 5.0 MB/s eta 0:00:00
Downloading typing_extensions-4.12.2-py3-none-any.whl (37 kB)
Downloading zope.interface-7.2-cp312-cp312-manylinux_2_5_x86_64.manylinux1_x86_64.manylinux_2_17_x86_64.manylinux2014_x86_64.whl (264 kB)
======================================== 264.7/264.7 kB 12.7 MB/s eta 0:00:00
Downloading packaging-24.2-py3-none-any.whl (65 kB)
======================================== 65.5/65.5 kB 3.9 MB/s eta 0:00:00
Downloading pygments-2.19.1-py3-none-any.whl (1.2 MB)
======================================== 1.2/1.2 MB 18.9 MB/s eta 0:00:00
Downloading comm-0.2.2-py3-none-any.whl (7.2 kB)
Downloading debugpy-1.8.11-cp312-cp312-manylinux_2_5_x86_64.manylinux1_x86_64.manylinux_2_17_x86_64.manylinux2014_x86_64.whl (4.2 MB)
======================================== 4.2/4.2 MB 13.6 MB/s eta 0:00:00
Downloading idna-3.10-py3-none-any.whl (70 kB)
======================================== 70.4/70.4 kB 2.3 MB/s eta 0:00:00
Downloading ipython-8.31.0-py3-none-any.whl (821 kB)
======================================== 821.6/821.6 kB 16.4 MB/s eta 0:00:00
Downloading matplotlib_inline-0.1.7-py3-none-any.whl (9.9 kB)
Downloading platformdirs-4.3.6-py3-none-any.whl (18 kB)
Downloading python_dateutil-2.9.0.post0-py2.py3-none-any.whl (229 kB)
======================================== 229.9/229.9 kB 8.6 MB/s eta 0:00:00
Downloading pyzmq-26.2.0-cp312-cp312-manylinux_2_28_x86_64.whl (860 kB)
======================================== 860.6/860.6 kB 17.2 MB/s eta 0:00:00
Using cached setuptools-75.8.0-py3-none-any.whl (1.2 MB)
Downloading tornado-6.4.2-cp38-abi3-manylinux_2_5_x86_64.manylinux1_x86_64.manylinux_2_17_x86_64.manylinux2014_x86_64.whl (437 kB)
======================================== 437.2/437.2 kB 13.2 MB/s eta 0:00:00
Downloading nest_asyncio-1.6.0-py3-none-any.whl (5.2 kB)
Downloading psutil-6.1.1-cp36-abi3-manylinux_2_12_x86_64.manylinux2010_x86_64.manylinux_2_17_x86_64.manylinux2014_x86_64.whl (287 kB)
======================================== 287.5/287.5 kB 12.3 MB/s eta 0:00:00
Downloading jedi-0.19.2-py2.py3-none-any.whl (1.6 MB)
======================================== 1.6/1.6 MB 12.2 MB/s eta 0:00:00
Downloading pexpect-4.9.0-py2.py3-none-any.whl (63 kB)
======================================== 63.8/63.8 kB 2.8 MB/s eta 0:00:00
Downloading prompt_toolkit-3.0.48-py3-none-any.whl (386 kB)
======================================== 386.6/386.6 kB 6.4 MB/s eta 0:00:00
Downloading six-1.17.0-py2.py3-none-any.whl (11 kB)
Downloading decorator-5.1.1-py3-none-any.whl (9.1 kB)
Downloading stack_data-0.6.3-py3-none-any.whl (24 kB)
Downloading asttokens-3.0.0-py3-none-any.whl (26 kB)
Downloading executing-2.1.0-py2.py3-none-any.whl (25 kB)
Downloading parso-0.8.4-py2.py3-none-any.whl (103 kB)
======================================== 103.7/103.7 kB 4.9 MB/s eta 0:00:00
Downloading ptyprocess-0.7.0-py2.py3-none-any.whl (13 kB)
Downloading pure_eval-0.2.3-py3-none-any.whl (11 kB)
Downloading wcwidth-0.2.13-py2.py3-none-any.whl (34 kB)
Building wheels for collected packages: pycups
Building wheel for pycups (pyproject.toml) ... done
Created wheel for pycups: filename=pycups-2.0.4-cp312-cp312-linux_x86_64.whl size=227729 sha256=592a9d9b5cbe4bf61a33d588a44814b2d78ae1f0b04725f0aed970eaec336de5
Stored in directory: /home/ums/.cache/pip/wheels/7e/03/57/972b28956b7dbcf30027b904c2552a343495ffa2369b087c78
Successfully built pycups
Installing collected packages: wcwidth, pyserial, PyQt5-Qt5, pycups, pure-eval, ptyprocess, typing-extensions, traitlets, tornado, six, setuptools, pyzmq, PyQt5-sip, pygments, psutil, prompt_toolkit, platformdirs, pexpect, pegen, parso, packaging, numpy, nest-asyncio, lxml, kiwisolver, jsonpickle, idna, executing, decorator, debugpy, constantly, bytecode, automat, attrs, atom, asttokens, zope-interface, stack_data, qtpy, python-dateutil, pyqtgraph, PyQt5, matplotlib-inline, jupyter-core, jedi, incremental, hyperlink, enaml, comm, twisted, jupyter-client, ipython, enamlx, qt-reactor, ipykernel, qtconsole, inkcut
Successfully installed PyQt5-5.15.11 PyQt5-Qt5-5.15.16 PyQt5-sip-12.16.1 asttokens-3.0.0 atom-0.11.0 attrs-24.3.0 automat-24.8.1 bytecode-0.16.0 comm-0.2.2 constantly-23.10.4 debugpy-1.8.11 decorator-5.1.1 enaml-0.18.0 enamlx-0.6.4 executing-2.1.0 hyperlink-21.0.0 idna-3.10 incremental-24.7.2 inkcut-2.1.5 ipykernel-6.29.5 ipython-8.31.0 jedi-0.19.2 jsonpickle-4.0.1 jupyter-client-8.6.3 jupyter-core-5.7.2 kiwisolver-1.4.8 lxml-5.3.0 matplotlib-inline-0.1.7 nest-asyncio-1.6.0 numpy-2.2.1 packaging-24.2 parso-0.8.4 pegen-0.3.0 pexpect-4.9.0 platformdirs-4.3.6 prompt_toolkit-3.0.48 psutil-6.1.1 ptyprocess-0.7.0 pure-eval-0.2.3 pycups-2.0.4 pygments-2.19.1 pyqtgraph-0.13.7 pyserial-3.5 python-dateutil-2.9.0.post0 pyzmq-26.2.0 qt-reactor-0.6.1 qtconsole-5.6.1 qtpy-2.4.2 setuptools-75.8.0 six-1.17.0 stack_data-0.6.3 tornado-6.4.2 traitlets-5.14.3 twisted-24.11.0 typing-extensions-4.12.2 wcwidth-0.2.13 zope-interface-7.2
1.5 Start Inkcut¶
Now you can start inkcut with:
How does that look like?
The terminal will be similar to this:
ums@richel-N141CU:~$ ~/inkcut_venv/bin/inkcut
Logging to /home/ums/.config/inkcut/logs/inkcut.txt
2025-01-15 17:52:53,379 | INFO | inkcut | ========================================
2025-01-15 17:52:53,379 | INFO | inkcut | Inkcut launched
2025-01-15 17:52:53,379 | INFO | inkcut | Version: 2.1.5
2025-01-15 17:52:53,379 | INFO | inkcut | Python: 3.12.3 (main, Nov 6 2024, 18:32:19) [GCC 13.2.0]
2025-01-15 17:52:53,379 | INFO | inkcut | System: uname_result(system='Linux', node='richel-N141CU', release='6.8.0-51-generic', version='#52-Ubuntu SMP PREEMPT_DYNAMIC Thu Dec 5 13:09:44 UTC 2024', machine='x86_64')
2025-01-15 17:52:53,379 | INFO | inkcut | Executable: /home/ums/inkcut_venv/bin/python3
2025-01-15 17:52:53,379 | INFO | inkcut | Args: ['/home/ums/inkcut_venv/bin/inkcut']
2025-01-15 17:52:53,408 | INFO | inkcut | Qt: 5.15.14 Api:
2025-01-15 17:52:53,409 | INFO | inkcut | ========================================
Warning: Ignoring XDG_SESSION_TYPE=wayland on Gnome. Use QT_QPA_PLATFORM=wayland to run on Wayland anyway.
2025-01-15 17:52:54,326 | DEBUG | inkcut | Starting plugin 'inkcut.core'
2025-01-15 17:52:54,326 | DEBUG | inkcut | Inkcut loaded.
2025-01-15 17:52:54,365 | DEBUG | inkcut | CLI | Commands loaded
2025-01-15 17:52:54,366 | DEBUG | inkcut | CLI | No cli command was given.
2025-01-15 17:52:54,368 | WARNING | inkcut | Translations not found at /home/ums/inkcut_venv/lib/python3.12/site-packages/inkcut/res/translations/en_US
2025-01-15 17:52:56,009 | DEBUG | inkcut | CLI | Commands loaded
2025-01-15 17:52:56,010 | DEBUG | inkcut | CLI | No cli command was given.
2025-01-15 17:52:56,021 | INFO | inkcut | Loading plugin inkcut.monitor
2025-01-15 17:52:56,022 | DEBUG | inkcut | Starting plugin 'inkcut.monitor'
2025-01-15 17:52:56,291 | INFO | inkcut | Loading plugin inkcut.device
Then Inkcut will start:
Inkcut is now started. Well done!
